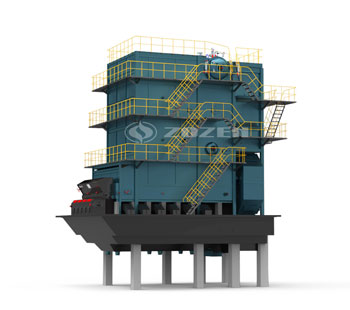

SHL Series Bulk Biomass fired Steam Boiler

Thermal Power: 10-35t/h

Working Pressure: 1.25-2.5 MPA

Output Water Temperature: 180-400℃

Applicable Fuel: Coal, Biomass

Applicable industry: Heating, Chemical, Food, Rubber, Feed


Installation:under engineer's guidance

Warranty:12 Month

Parameter above for reference only. Please click the button bellow to know more.

  • Product Description
  • Specification
  • Delivery
  • Description

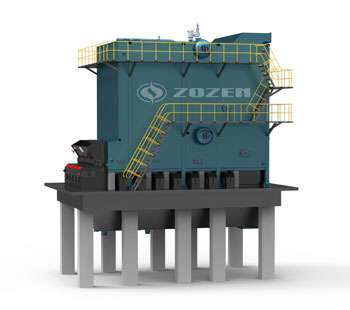

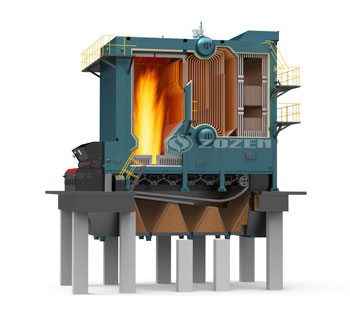

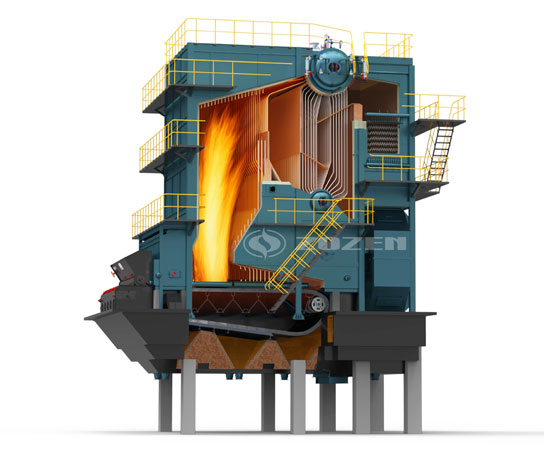

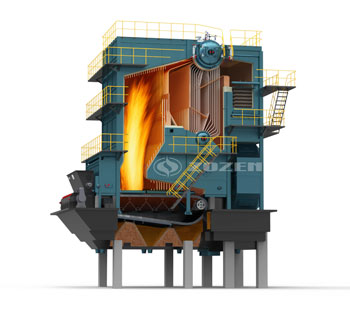

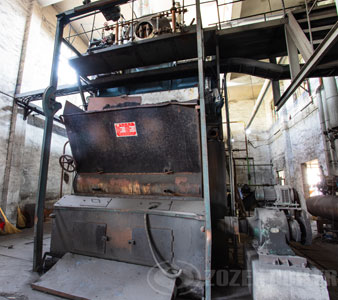

    Series of SHL boiler is bulk industrial boiler with dual boiler cylinders and transverse arranged. The boiler’s hearth consists of front, rear, left and right water wall, the body consists of an upper, a lower drum and convection pipes. There are an economizer and an air preheater at the tail. The combustion equipment is squama grating, free timing control. Exit shop in bulk type for site assembly and construction.

    This type of boiler has high efficiency, sufficient output, good load adaptability, compact overall structure, independent air bunker, bilateral air intake, easy control of combustion, reasonable front and rear arch coordination, strong adaptability of coal type, and equipped with alarm systems such as super-humidity, pressure relief and various interlocking and automatic control, etc., with high degree of operation automation.

    Technical advantages

    1.The double drums of this type of boiler series are transversely arranged with water pipe heat dissipating steam, hot water boiler and boiler combustion equipment as chain grate furnace. The fuel is designed according to bituminous coal, and equipped with economizer, air preheater, blower and induced draft fan, reducer, electric control and dust removal equipment. The operation mechanization has been realized.

    2. Pure natural circulation system is adopted in this machine.

  • Product Parameters

    Model SHL10-1.25-M
    Rated evaporation capacity(t/h) 10 15 20 25 30 35
    Pressure(MPa) 1.25/1.6/2.45/ 1.25/1.6/2.5/ 1.25/1.6/2.5/ 1.25/1.6/2.5/ 1.25/1.6/2.5/ 1.25/1.6/2.5
    Steam temperature/Rated output water temperature(℃) 194/204/225/ 194/204/225/ 194/204/225/ 194/204/225/ 194/204/225/ 194/204/225
    Feed water/return          water temperature(℃) 105 105 105 105 105 105
    Available Fuel Biomass Biomass particle fuel
    Low heating value(KJ/kg) 16240
    Thermal efficiency(%) 81.0 81.0 81.5 81.6 82.0 82.0
    Fuel consumption(kg/h) 1860 2790 3720 4650 5580 6510

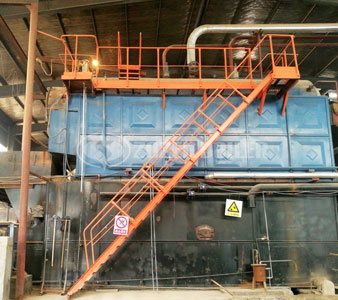

    • 10 t SZL Series Biomass Fired Boiler Project
    • 15 tph SZL biomass fired steam boiler project
    • 12 tph DZL biomass steam boiler project
    • 20 tph SZL biomass fired water tube boiler project

    Packaging: Boiler main part is in nude packing, accessories are in export standard wooden box;

    Container type: Flat rack and20*40 normal container based on different size boiler(model);

    Shipping price: The lowest shipping price in the market;

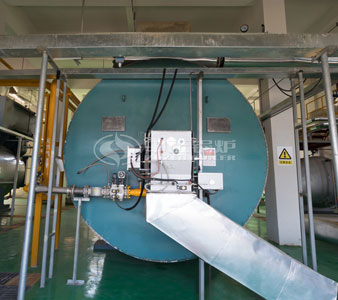

  • 8.2 MW gas fired thermal fluid heater project

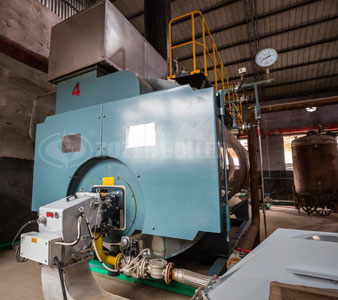

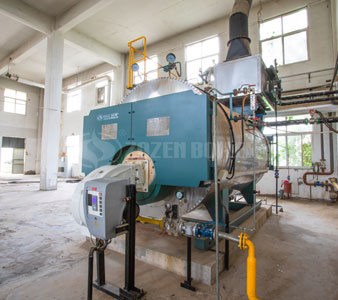

  • 10 tph WNS condensing gas fired steam boiler project
