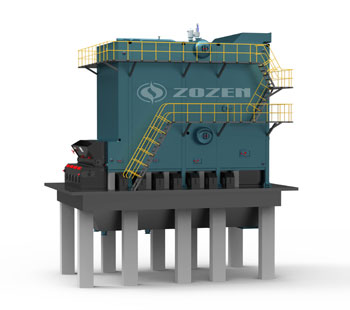

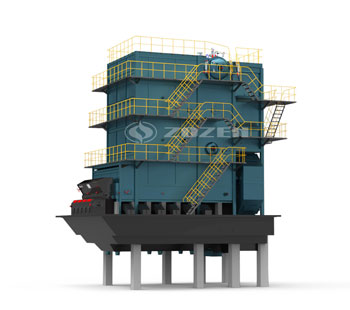

SHL Series Double Drums Bulk Chain Grate Steam Boiler

Thermal Power: 10-35t/h

Working Pressure: 1.25-2.5 MPA

Output Water Temperature: 180-400℃

Applicable Fuel: Coal, Biomass

Applicable industry: Heating, Chemical, Food, Rubber, Feed


Installation:under engineer's guidance

Warranty:12 Month

Parameter above for reference only. Please click the button bellow to know more.

  • Product Description
  • Specification
  • Delivery
  • Description

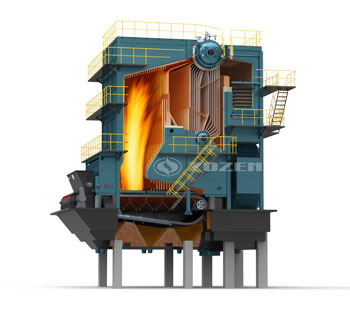

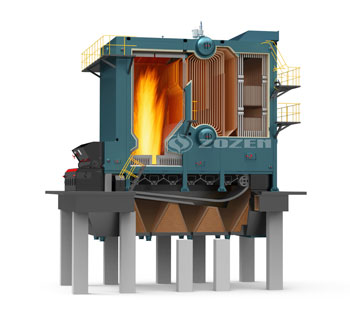

    Series of SHL boiler is bulk industrial boiler with dual boiler cylinders and transverse arranged. The boiler’s hearth consists of front, rear, left and right water wall, the body consists of an upper, a lower drum and convection pipes. There are an economizer and an air preheater at the tail. The combustion equipment is squama grating, free timing control. Exit shop in bulk type for site assembly and construction.

    Technical advantages

    This type of boiler has the following excellent features: The boiler has superior output capacity. The heating is fast, the thermal efficiency is high, and the land occupation is small; the grate is made of scale-type grate, and the running reliability is greatly improved; the furnace arch wall can be casted. Good sealing performance, improved fire conditions, environmental protection and energy saving, strong combustion; high degree of automation, stable operation, safe and reliable, and extremely high service life.

  • Product Parameters

    Model SHL10-1.25-M
    Rated evaporation capacity(t/h) 10/ 15/ 20/ 25/ 30 35
    Pressure(MPa) 1.25/1.6/2.45/1.0 1.25/1.6/2.5/1.25 1.25/1.6/2.5/1.0/1.25 1.25/1.6/2.5/1.25 1.25/1.6/2.5/1.0 1.25/1.6/2.5
    Steam temperature/Rated output water temperature(℃) 194/204/225/115 194/204/225/115 194/204/225/95/130 194/204/225/115 194/204/225/115 194/204/225
    Feed water/return
    water temperature(℃)
    105 105 105 105 105 105
    Heating area(㎡) Proper Radiation (Radiation)57.5 (Radiation)63.5 (Radiation)97.5 (Radiation)87.5 (Radiation)80.7 (Radiation)131.7
    Convection (Convection)152 (Convection)178.9 (Convection)243 (Convection)263 (Convection)315 (Convection)388.5
    Economizer/Air preheater(㎡) 94.4/170 118/211 410/332 198/422 339/548 311.6/640
    Effective area of great(㎡) 12.2 18.07 23.2 27.7 31.0 35.12
    Available Fuel fuel Coal, biomass molding pellet fuel
    Low heating value<(KJ/kg)/td> 16240
    Thermal efficiency(%) 81.0 81.0 81.5 81.6 82.0 82.0
    Fuel consumption(kg/h) 1860 2790 3720 4650 5580 6510
    Overall dimension of boiler transported
    5.5/1.5/1.6 6.2/1.5/1.6 6.1/1.29/1.06 6.2/1.5/1.8 5.3/4.0/4.2 7.6/1.3/1.04
    Weight of biggest part for transportation(t) 3.2 4.2 7.3 8.5 10.7 9.4
    Overall dimension of boiler assemb
    11.9x7.0x9.8 12.4x7.5x10.5 14.3x8.8x12.5 12.5x8.5x12.5 12.0x9.0x12.5 15.35x8.88x12.5
    • 10.5MW SZL Series Coal-fired Hot Water Boiler Project
    • 20 tph SZL coal fired steam boiler project
    • 46 MW DHL angular pipe water heating boiler project
    • 10 tph SZL coal fired water tube boilers project

    Packaging: Boiler main part is in nude packing, accessories are in export standard wooden box;

    Container type: Flat rack and20*40 normal container based on different size boiler(model);

    Shipping price: The lowest shipping price in the market;
