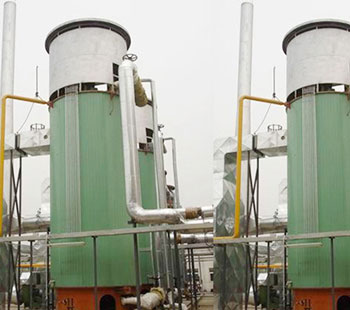

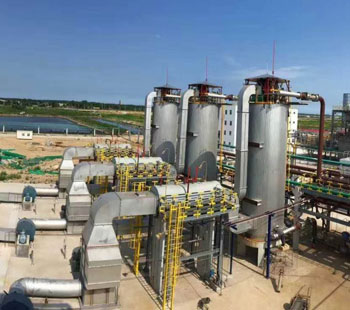

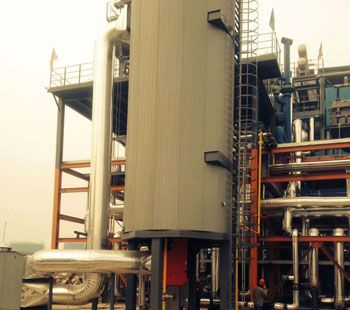

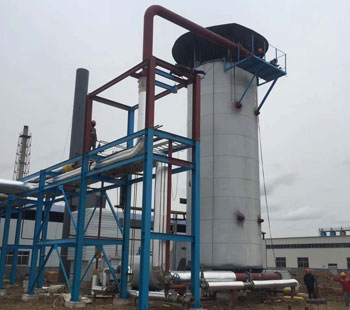

RYQ Series Molten Salt Heater

Product Thermal Power: 360-14000KW

Working Pressure:0.8-1.6MPA

Working Media: Molten Salt

Output Water Temperature: 450°C

Applicable Fuel: Bituminous coal, heavy oil, light oil, diesel, natural gas, liquefied gas, city gas.

Applicable industry: Chemical, fertilizer, melamine, alumina and other high temperature heating technology.

Usage:Industrial

Installation:under engineer's guidance

Warranty:12 Month

Parameter above for reference only. Please click the button bellow to know more.

  • Product Description
  • Specification
  • Delivery
  • Description

    molten salt heaters use molten potassium nitrate and sodium nitrite as heating media. Molten salt heater will heat the powder salt over the melting point until the viscosity of the molten salt allows circulating pump works, after the whole system is under circulating condition, then feed then into the thermal fluid heater for further circulating rising temperature to make it to be recycling used. Normal media working temperature is 400-550℃, top working temperature could reach 600℃.

    Technical advantages

    1. it can reach high temperature under low pressure, top temperature can reach 600℃

    2. It can keep stable heating temperature, and accurately adjust, with high thermal efficiency.

    3. operating control and safety test devices are complete.

    4. heat transfer efficiency is two times of other thermal fluid heater.

    5. Good heat resistance ability.

  • Product Parameters

    Model RYQ-350 RYQ-600 RYQ-850 RYQ-1200 RYQ-1400 RYQ-2400 RYQ-3500
    Rated thermal power(kW) 350 600 850 1200 1400 2400 3500
    Thermal efficiency % 70 70 70 70 70 70 75
    Design pressure(MPa) 1 1 1 1.1 1.1 1.1 1.3
    Top media temperature(℃) 450 450 450 450 450 450 450

    Model RYQ-4600 RYQ-7000 RYQ-8170 RYQ-10500 RYQ-12000 RYQ-14000
    Rated thermal power (kW) 4600 7000 8170 10500 12000 14000
    Thermal efficiency (%) 75 75 75 75 75 75
    Design pressure (MPa) 1.3 1.3 1.8 1.8 1.9 1.6
    Top media temperature(℃) 450 450 450 450 450 450



    • 8.2 MW gas fired thermal fluid heater project
    • 2.4MW YQW gas fired thermal fluid heater project
    • 8.2MW YQW gas-fired thermal fluid heater project
    • 7MW YLW biomass fired thermal fluid heater project

    Packaging: Boiler main part is in nude packing, accessories are in export standard wooden box;

    Container type: Flat rack and20*40 normal container based on different size boiler(model);

    Shipping price: The lowest shipping price in the market;
