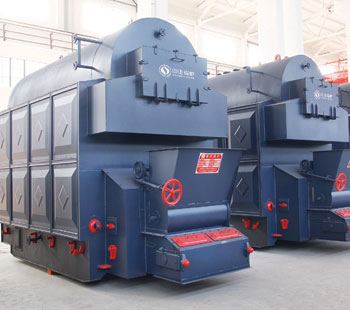

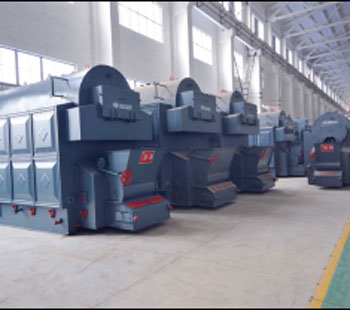

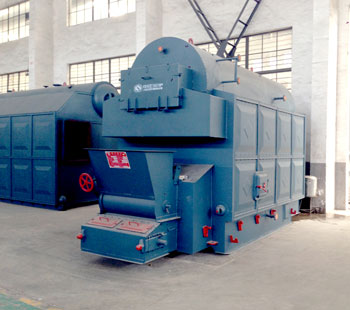

DZL Series Coal Fired Hot Water Boiler

Thermal Power: 0.35-14MW

Working Pressure: 0.7-1.25 MPA

Output Water Temperature: 115/70℃, 95/70℃

Applicable Fuel: Bituminous Coal,Lean Coal,Anthracite

Applicable industry: Heating, Hotels, Schools, Hospitals


Installation:under engineer's guidance

Warranty:12 Month

Parameter above for reference only. Please click the button bellow to know more.

  • Product Description
  • Specification
  • Delivery
  • Description

    DZL series package boiler is a horizontal three-pass water and fire pipe chain grate boiler, which uses medium-sized bituminous coal. The boiler body is vertical single drum, and the threaded pyrotechnic tube is arranged in the drum to form a convection heating surface, and the drum and the water walls on both sides constitute a radiation heating surface of the furnace.

    The combustion equipment uses light chain grate, the whole package is finished in the factory. The electric control makes the governor stepless speed regulation, the limit parameter alarm and the interlock protection.

    Technical advantages

    1. Steel pipe cutting, thread pipe pressing and convection pipe processing all adopt advanced numerical control technology.

    2. The layout of chain grate is neat and beautiful, result in front and rear smoke box panel using CNC plasma cutting machine.

    3. The flange of the socket is welded by robots.

    4. The chain grate is manufactured by our factory, and it is tested for 72 hours before leaving the factory to ensure that the tightness is moderate and won’t go wrong.

    5. Advanced manufacturing technology, using assembly line automatic spinning operation.

    6. The independent secondary draft fan makes it easy to control and adjust the wind volume and pressure.

    7. Abundant auxiliary configuration

  • Product Parameters

    DZL0.7-0.7/95/70-M DZL1.4-0.7/95-70-M DZL2.8-0.7/95/70-M
    Rated thermal power(t/h/MW) 0.7 1.4 2.8 4.2
    Working pressure(MPa) 0.7 0.7 0.7 1.0
    Rated output water temperature(℃) 95 95 95 115
    Return water temperature(℃) 70 70 70 70
    Heating area(㎡)
    Body 32.4 46.0 106.89 126.7
    Economizer(㎡) 12.51 35.2 38.5 78.5
    Effective area of great(㎡) 2.05 3.70 5.30 8.32
    Available Fuel
    Low heating value(KJ/kg) 21000
    Fuel consumption(kg/h) 196 392 784 1176
    Thermal efficiency(%) 79.00 79.00 79.00 79.00
    Weight of biggest part of transportation(t)
    13 22 30 23
    Overall dimension of boiler transportation LxWxH(m) 5.2x2.0x2.9 5.7x2.5x3.5 6.6x2.6x3.6 7.3x3.2x3.6
    Overall dimension of boiler assembled LxWxh(m)
    6.0x3.5x4.1 6.0x3.9x5.0 7.2x4.0x4.9 8.0x5.1x6.0
    • 10.5MW SZL Series Coal-fired Hot Water Boiler Project
    • 20 tph SZL coal fired steam boiler project
    • 46 MW DHL angular pipe water heating boiler project
    • 10 tph SZL coal fired water tube boilers project

    Packaging: Boiler main part is in nude packing, accessories are in export standard wooden box;

    Container type: Flat rack and20*40 normal container based on different size boiler(model);

    Shipping price: The lowest shipping price in the market;
