YQW Series Gas Fired Horizontal Thermal Fluid Heater

Product Thermal Power: 1400-14000KW

Working Pressure: 0.8-1.0MPA

Output Water Temperature: 320°C

Applicable Fuel: natural gas, coke oven gas

Applicable industry: Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries.

Usage:Industrial

Installation:under engineer's guidance

Warranty:12 Month

Parameter above for reference only. Please click the button bellow to know more.

  • Product Description
  • Specification
  • Delivery
  • Description

    YQW series gas and oil-fired thermal fluid heater adopts 3-trips round coil tube structure. The coil tube end adopts beam port to effectively protect the furnace all at boiler end, is equipped with advanced combustion device, and with fully automatic operation. After furl ignition from burner, it forms a flame full fill into the round furnace tube, and through the furnace tube wall, the heat is transferred by radiation, which is the first pass. The high temperature flue gas after combustion gathers at rear furnace door and then turns into the second trip, which is convection tube area. After convection heat exchange, the flue gas temperature is going lower and comes to front furnace door, and from here it turns into the third trip ether into the tube bundle area, then through economizer its emitted into atmosphere through chimney.

    Technical advantages

    1. Square coil pipe and coil pipe all adopt argon arc welding technique and the weld line will be done 100% radiographic inspection.

    2. Fully automatic operating, burning, high slot oil level, output temperature and flow rate are adjusted automatically and self-protected.

    3. Before delivery, the residue moisture is removed completely, so the system draining period is reduced to 2 days from 12 days.

  • Product Parameters

    Model YQW-700Q YQW-1000Q YQW-1200 Y(Q) YQW-1400 Y(Q) YQW-1800 Y(Q) YQW-2400 Y(Q) YQW-2800 Y(Q) YQW-3500 Y(Q)
    Rated heating load(KW) kW 700 1000 1200 1400 1800 2400 2800 3500
    x104kcal/h 60 80 100 120 160 200 240 300
    Desigen working temperature(≤℃) 320 320 320 320 320 320 320 320
    Rated working pressure(MPa) 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
    Heat efficiency(≥%) 88 88 88 88 90 90 90 90
    System installed capacity(KW) 18 18 35 35 56 56 66 75
    Maximum transport weight(Kg) 4220 5000 5450 6400 8500 11200 12500 14000

    Model YQW-4200Q YQW-4600Q YQW-6000Q YQW-7000Q YQW-8200Q YQW-9400Q YQW-10500Q YQW-12000Q YQW-14000Q
    Rated heating load(KW) kW 4200 4600 6000 7000 8200 9400 10500 12000 14000
    x104kcal/h 360 400 500 600 700 800 900 1000 12000
    Desigen working temperature(≤℃) 320 320 320 320 320 320 320 320 320
    Rated working pressure(MPa) 0.8 0.8 0.8 0.8 0.8 1.0 1.0 1.0 1.0
    Heat efficiency(≥%) 90 90 90 90 90 90 90 90 90
    System installed capacity(KW) 95 95 140 140 140 200 200 240 300
    Maximum transport weight(Kg) 15800 18000 24500 28500 33000 39000 55000 60000 65000

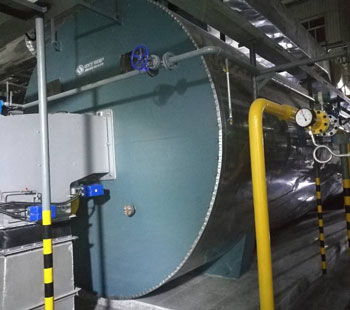

    • 8.2 MW gas fired thermal fluid heater project

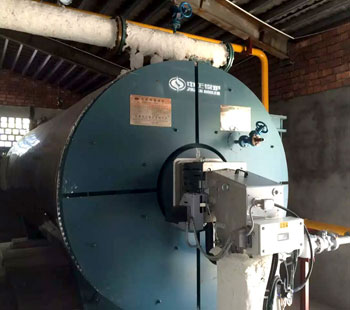

    • 2.4MW YQW gas fired thermal fluid heater project

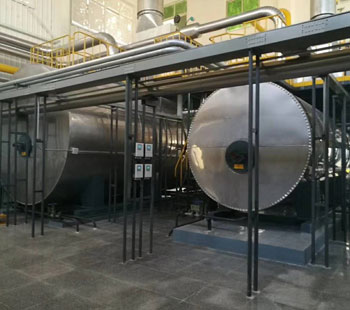

    • 8.2MW YQW gas-fired thermal fluid heater project

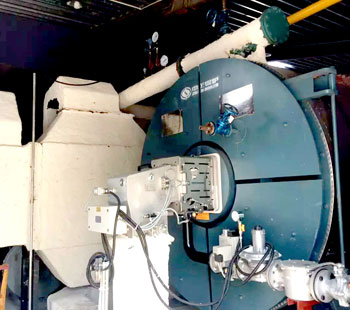

    • 7MW YLW biomass fired thermal fluid heater project

    Packaging: Boiler main part is in nude packing, accessories are in export standard wooden box;

    Container type: Flat rack and20*40 normal container based on different size boiler(model);

    Shipping price: The lowest shipping price in the market;
