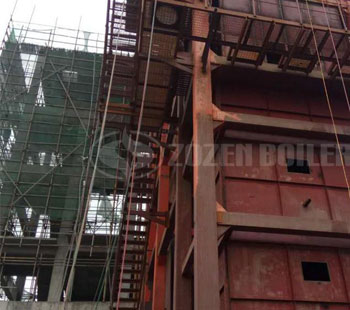

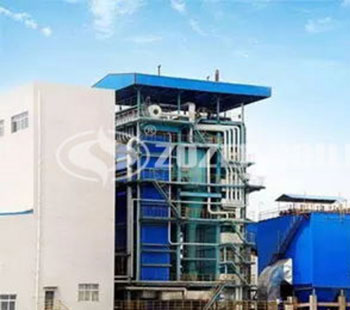

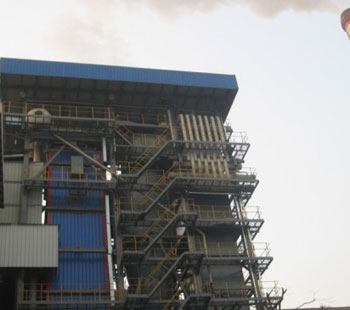

DHX Series Circulating Fluidized Bed Steam Boiler

Product Thermal Power: 35-75t/h

Working Pressure: 1.25-5.3 MPA

Output Water Temperature: 194-485℃

Applicable Fuel: Coal, Gangue, Biomass, Waste, Sludge

Applicable industry: Centralized Heating


Installation:under engineer's guidance

Warranty:12 Month

Parameter above for reference only. Please click the button bellow to know more.

  • Product Description
  • Specification
  • Delivery
  • Description

    As a new mature high-efficiency and low-pollution clean coal technology, circulating fluidized bed combustion (CFBC) technology has many advantages that other combustion methods do not have. Circulating fluidized bed combustion is low-temperature combustion, so the helium oxide emission is much lower than that of pulverized coal furnace, only 200ppm. CFBC can desulfurize directly during the combustion process, and the desulfurization efficiency is high. The technology and equipment are simple and economic, and the costs of its initial investment and operation are much lower than those of dry pulverized coal furnace and flue gas desulfurization (PC+FCD).

    Wide adaptability fuel and high combustion efficiency, especially suitable for low calorific value inferior coal.

    The discharged ash residue has good activity and is easy to be comprehensive utilized without secondary ash residue pollution.

    The load adjustment range is large, and the low load can be reduced to about 30% of the full load.

    Technical advantages

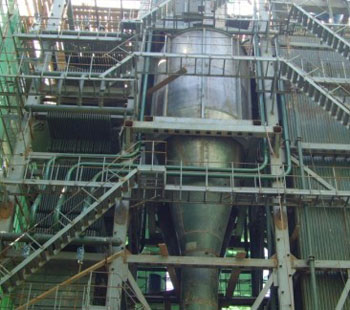

    1. High temperature cyclone separator.

    2. Large furnace design.

    3. Low bed pressure operation.

    4. Bell jar type hood.

  • Product Parameters

    Model DHX35-1.25-M DHX50-1.25-M DHX75-1.25-M ZZ-35/3.82-M ZZ-50/3.82-M ZZ-65/3.82-M ZZ-75/3.82-M ZZ-75/5.3-M
    RATED THERMAL POWER(t/h) 35 50 75 35 50 65 75 75
    WORING PRESSURE(MPA) 1.25 1.25 1.25 3.82 3.82 3.82 3.82 5.3
    RATED OUTPUT WATER TEMPERATURE(℃) 194 194 194 450 450 450 450 485
    APPLICABLE FUEL All kinds of coal, gangue, biomass, garbage and sludge
    THERMAL EFFICIENCY(%) 89 89 89 89 89 91 91 91
    • 100 tph coal fired steam boiler project
    • 50 tph DHX circulating fluidized bed boiler project
    • 17.5 MW SHX series circulating fluidized bed hot water boiler project
    • 35 tph SHX circulating fluidized bed steam boiler project

    Packaging: Boiler main part is in nude packing, accessories are in export standard wooden box;

    Container type: Flat rack and20*40 normal container based on different size boiler(model);

    Shipping price: The lowest shipping price in the market;
